Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI/4G Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through
serial ports such as RS232 and RS485.

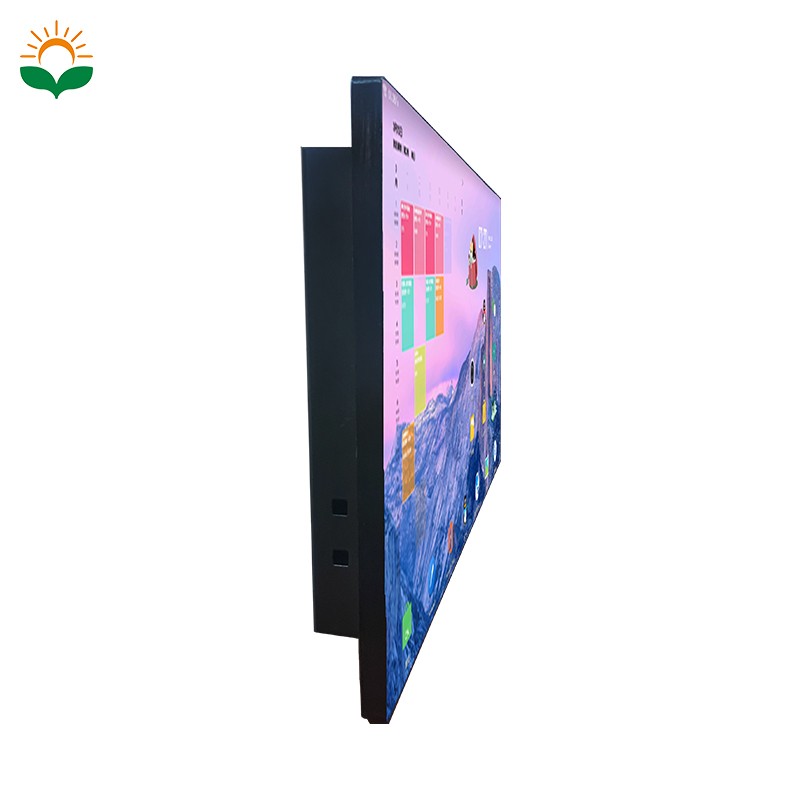

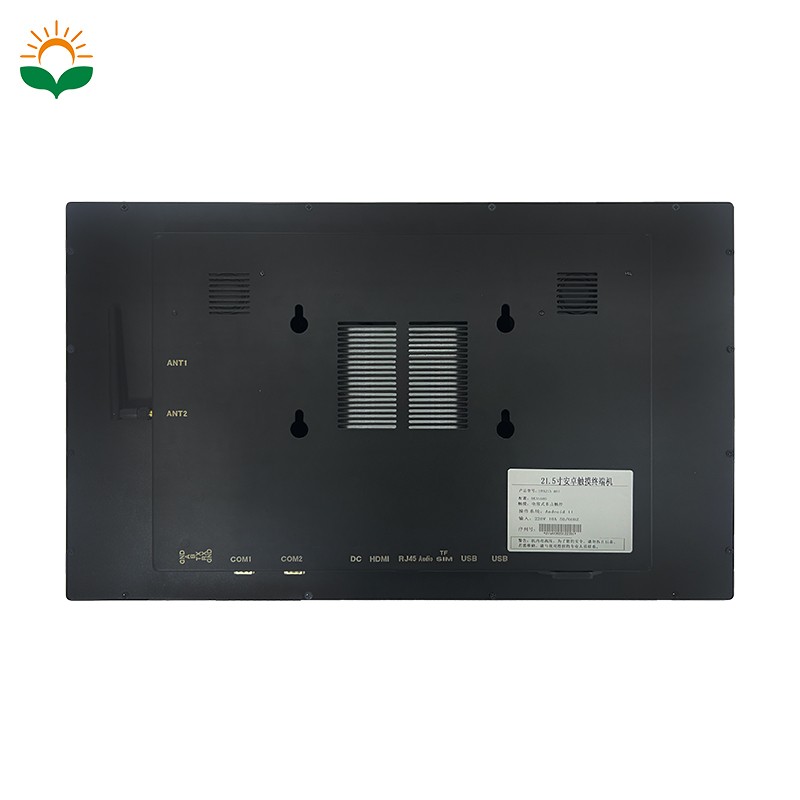

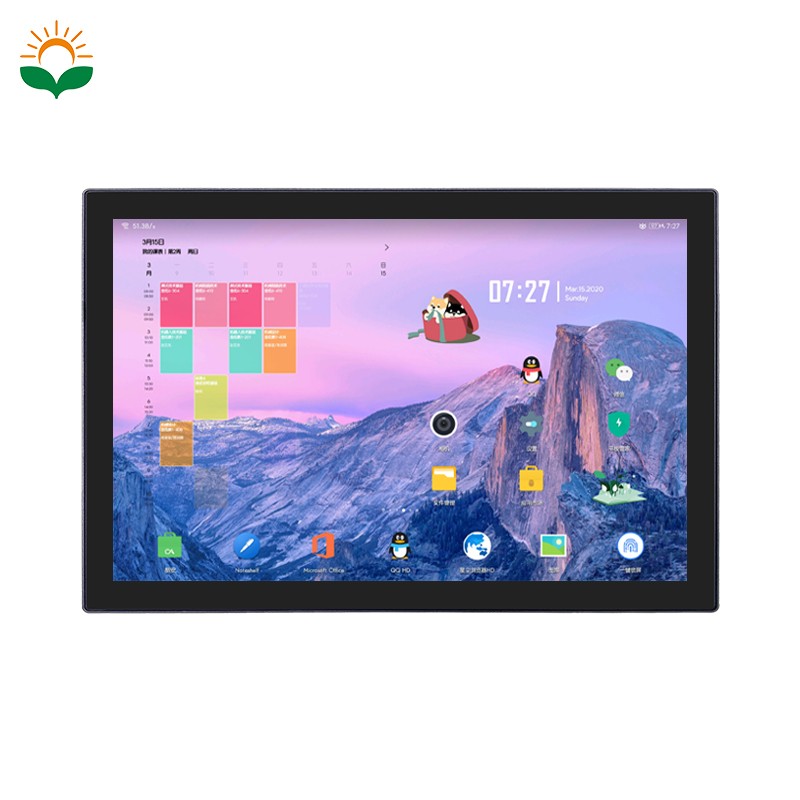

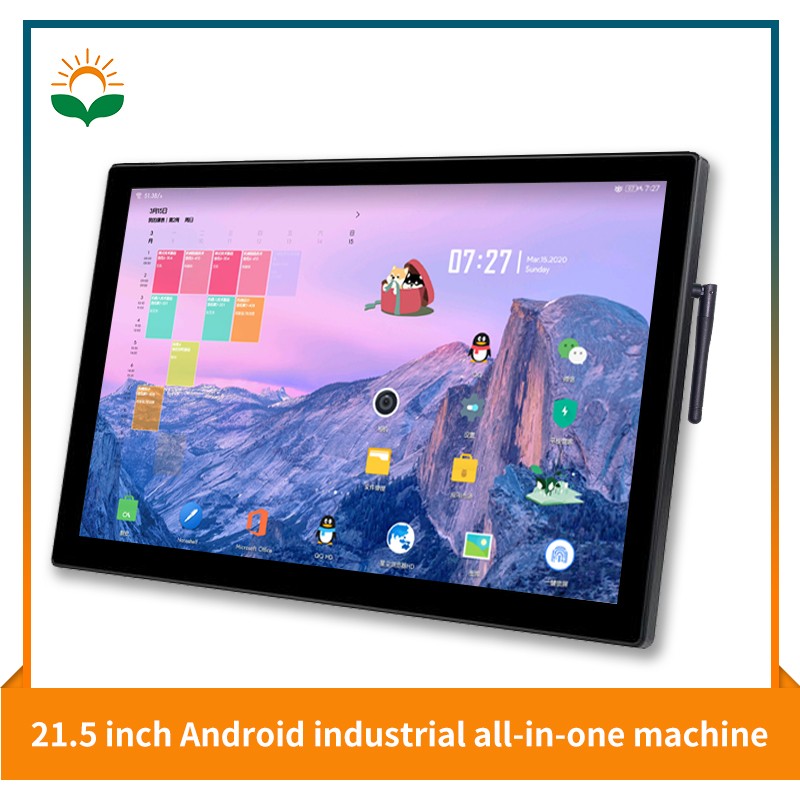

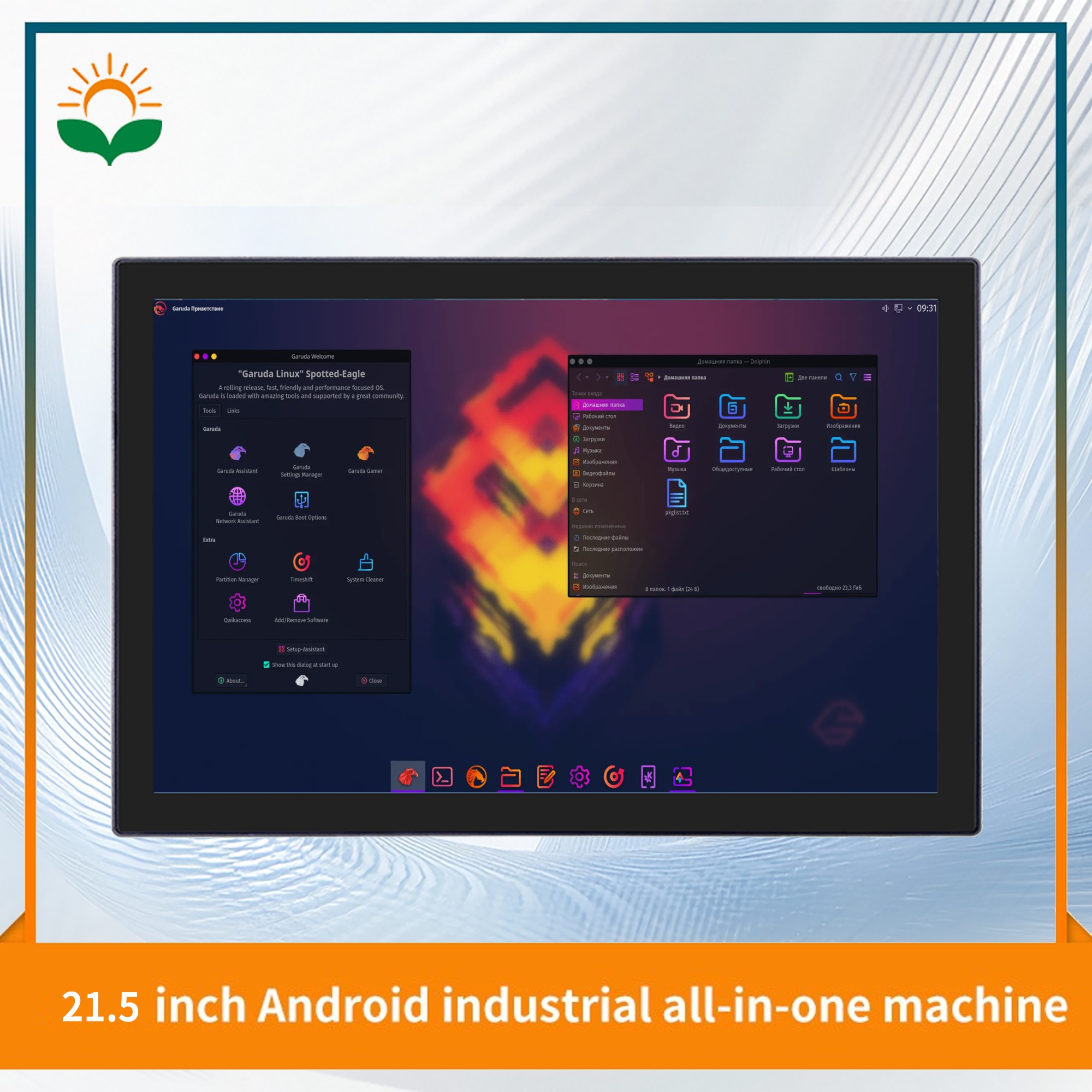

1, Overall product photos

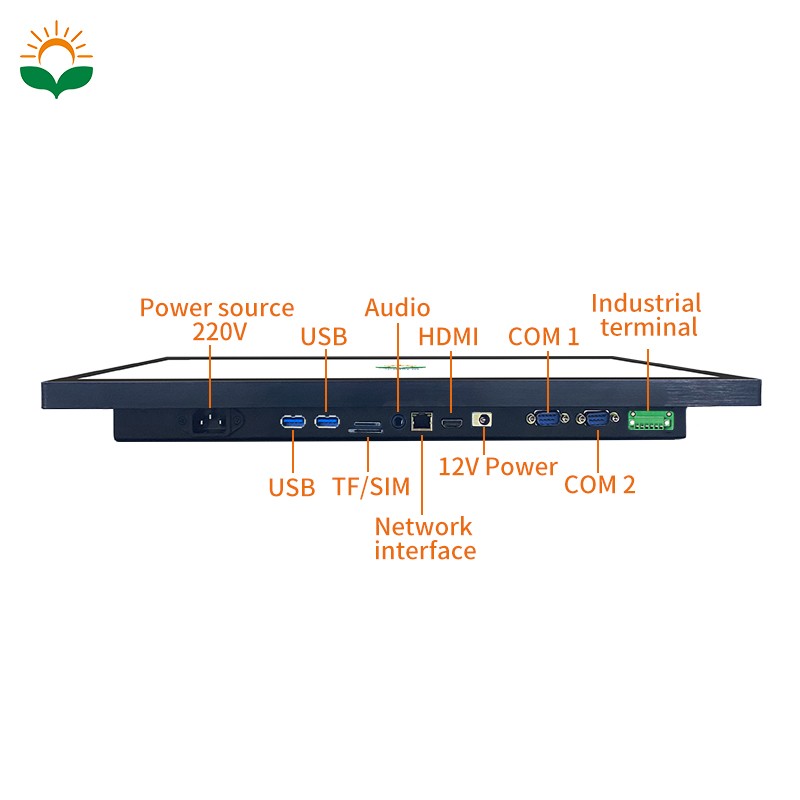

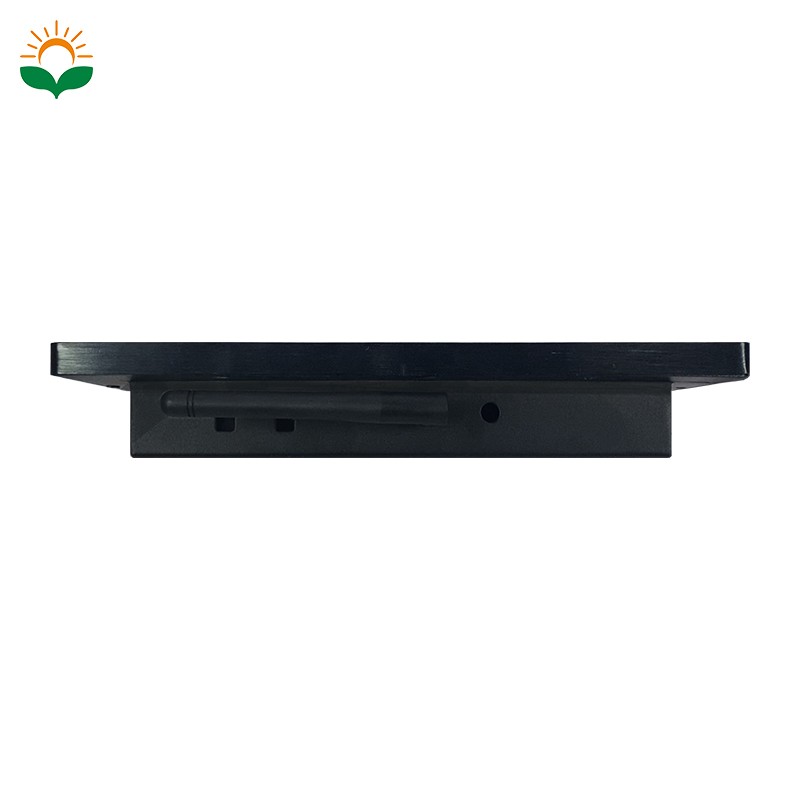

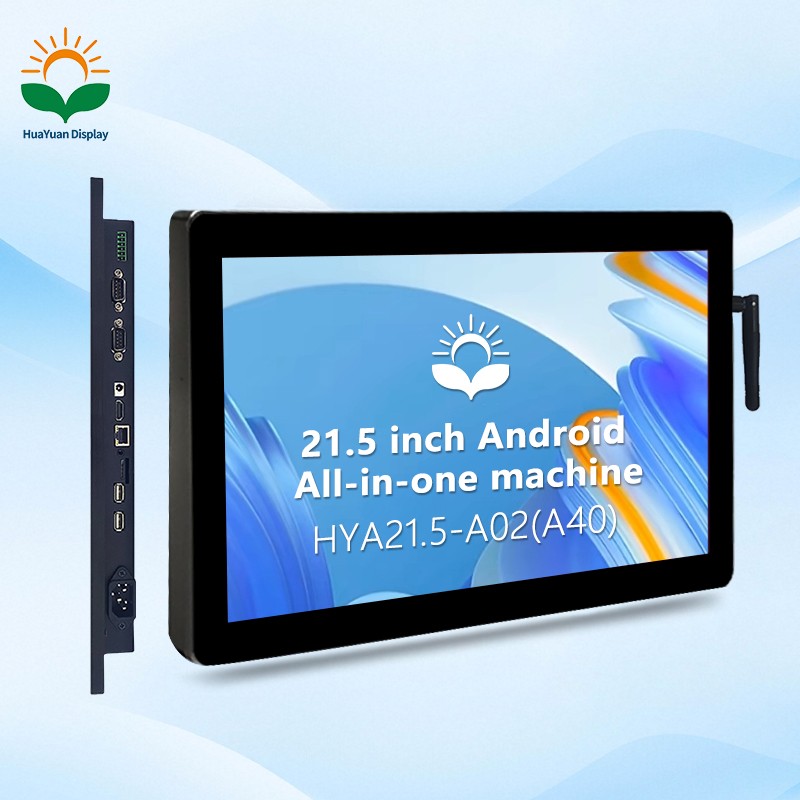

2, Product interface photos
3, Product structure drawing
Display parameters
| Parameters | Data | Instructions |
| Display size | 21.5 inch | 16:9 |
| Resolution | 1920*1080 | |
| Colors | 16.7M | - |
| Active Area dimenstion(A.A) |
476.64(H)*268.11(W) mm
|
- |
| Backlight brightness | 250 nit | The brightness can be adjust by software |
| Backlight lifetime(Hrs) | 50000Hrs | LED backlight |
| Viewing direction(CR>10) | wide view angle | |
| Touch type | Capacitive touch panel | Support single or 10 point touch |
| Working life |
Single point can affordable
≥50 million times
|
|
| Response time | 8ms | |
| Case size |
510.4*269.8*25.4 mm
|

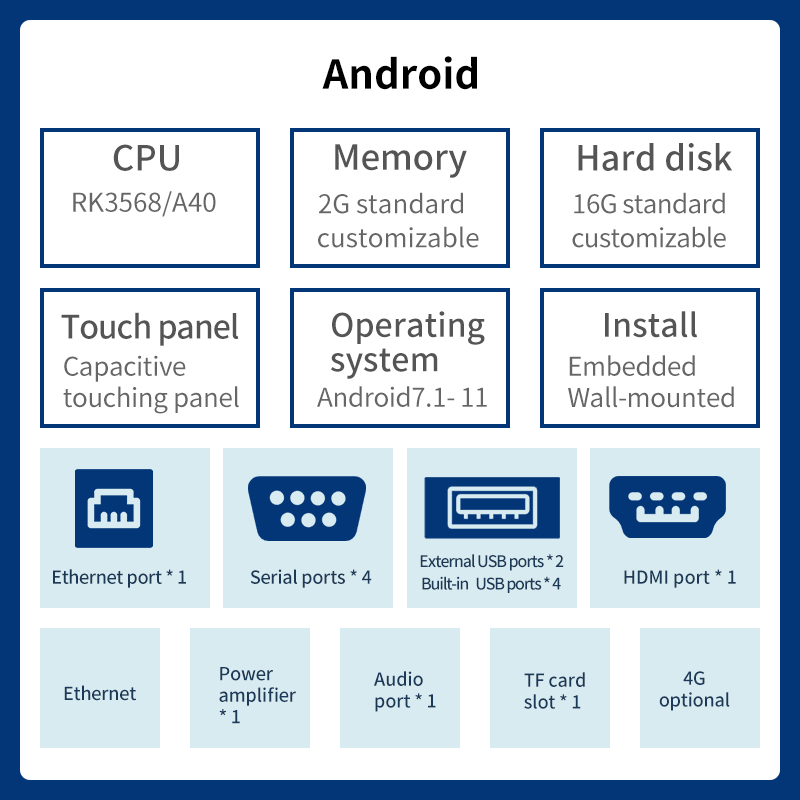

Hareware parameters
| CPU |
RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz
|
|
Memory
|
