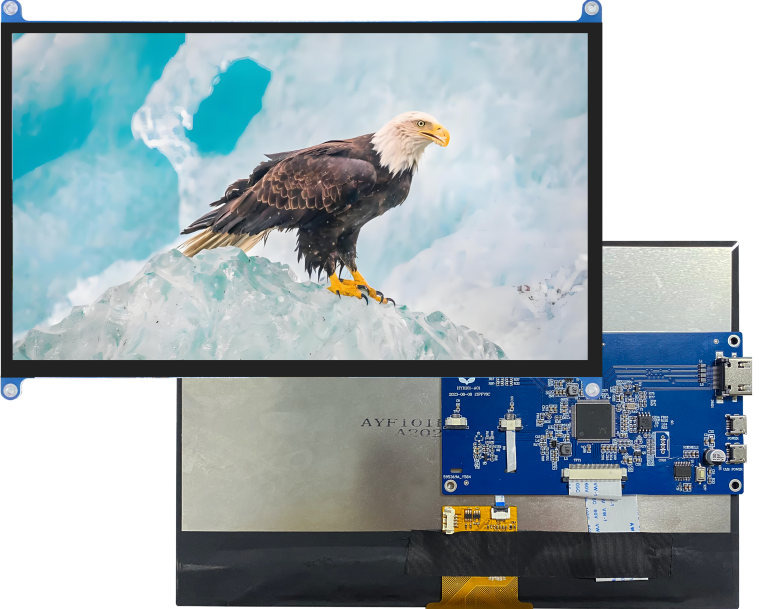

10.1-inch HDMI Portable Industrial Display: Technological Breakthroughs and Scenario-based Application Analysis

With the rapid development of Industry 4.0, smart IoT, and professional audiovisual fields, the 10.1-inch HDMI portable industrial display has emerged as a core tool for industrial intelligence upgrades due to its high reliability, multi-scenario adaptability, and integration of cutting-edge technologies. This article provides an in-depth analysis of its technological breakthroughs and industry value from the perspectives of technical principles, core specifications, application scenarios, and future trends, offering comprehensive insights for professionals.

I. Technological Breakthroughs: From Display Architecture to Industrial-Grade Design

1. Display Technology Principles and Hardware Innovations

Panel and Backlight Technology:
Adopting IPS Pro (Enhanced In-Plane Switching) or VA (Vertical Alignment) panels paired with Mini LED backlight modules, the display achieves local dimming technology, delivering a dynamic contrast ratio of up to 1,000,000:1 and supporting the HDR10+ standard. With a peak brightness of 1200 nits and AG (Anti-Glare) coating, it ensures visibility under direct sunlight in outdoor environments.

HDMI 2.1 Transmission Protocol:
Based on FRL (Fixed Rate Link) mode, the bandwidth is increased to 48 Gbps, enabling lossless transmission of 4K@120Hz signals. The display also supports 16K resolution adaptation via DSC (Display Stream Compression) technology. Utilizing TMDS (Transition Minimized Differential Signaling) encoding and impedance matching (90Ω ±5%) design, signal attenuation is controlled within -2 dB.

2. Industrial-Grade Structural Design

Environmental Adaptability.

Protection Rating: IP68 dust/water resistance (submersible in 1.5 meters of water for 30 minutes), compliant with MIL-STD-810H military-grade shock resistance standards, and capable of withstanding extreme temperatures (-40°C to 85°C) and salt spray corrosion.

Electromagnetic Compatibility: Certified by EN 55032 Class B, the display employs multi-layer shielded PCB and ferrite cores to suppress high-frequency EMI interference.

Power Supply and Endurance:
Supporting wide-voltage input (DC 12–48V) and Anton battery hot-swap technology, it integrates an intelligent power management chip (e.g., TI BQ25703) to maintain typical power consumption ≤10W and extend battery life to 16 hours.

II. Core Specifications and Performance Advantages

Key Metrics Technical Specifications Industry Value

Resolution 1920×1200 (16:10) Adapts to industrial control system UIs and multi-tasking split-screen demands

Color Gamut Coverage 98% DCI-P3 / ΔE<1.2 Ensures accurate color reproduction for medical imaging and film grading

Refresh Rate 120Hz (supports VRR) Eliminates motion blur in industrial robot trajectory displays

Interface Configuration HDMI 2.1 + USB-C (DP Alt Mode) Compatible with PCs, PLCs, cameras, and multi-device signal inputs

MTBF (Mean Time Between Failures) 100,000 hours 7×24 continuous operation, reducing maintenance costs

III. Scenario-based Applications: Multi-domain Practical Solutions

1. Industrial Automation and Smart Manufacturing

Production Line Monitoring: Through HDMI loop-out functionality, the display synchronizes PLC control interfaces with machine vision inspection screens, supporting protocols like OPC UA and EtherCAT to provide real-time yield rate feedback.
Mobile Inspection: Integrated with 5G modules and BeiDou positioning, it pairs with drones for high-definition inspections of high-voltage grids and oil/gas pipelines, achieving <10ms latency.

2. Medical Imaging and Surgical Navigation

DICOM Mode Calibration: Hardware-level grayscale linearization optimizes CT/MRI images for JND (Just Noticeable Difference), achieving 12-bit grayscale resolution.
Intraoperative Real-time Navigation: Linked with endoscopy systems, it supports 4K 3D imaging at 60Hz refresh rates with <0.05% error rates.

3. Film Production and Outdoor Broadcasting

HDR Monitoring: Built-in 3D LUT loading and waveform monitors support HLG/PQ curves and 10-bit color depth, meeting cinematic grading workflows.
Wireless Transmission: Utilizing 60GHz millimeter-wave technology, it enables 4K@60Hz wireless casting with a 10-meter range and 300% enhanced anti-interference capability.

4. Emergency Response and Public Safety

Multi-modal Interaction: Supports touch + voice commands for rapid access to GIS maps and real-time thermal imaging during firefighting or earthquake rescues.
Explosion-proof Design: Certified by ATEX, it operates safely in methane-rich environments (up to 20% concentration).

IV. Purchasing Guide: Key Considerations and Pitfall Avoidance

1. Core Parameter Priorities

Industrial Scenarios: Prioritize IP68 protection, wide temperature range (-40°C to 85°C), and high brightness (≥1000 nits).
Medical Scenarios: Require DICOM Part 14 certification and ΔE<1.0.
Film Scenarios: Focus on color gamut coverage (DCI-P3 ≥95%) and HDR modes (HLG/PQ).

2. Solutions for Common Issues

Signal Latency: Activate HDMI 2.1’s ALLM (Auto Low Latency Mode) to reduce input lag to <5ms.
EMI Interference: Use double-shielded coaxial cables with common-mode chokes to suppress high-frequency noise by ≥20dB.

Conclusion

The 10.1-inch HDMI portable industrial display is redefining the boundaries of industrial interaction through technological breakthroughs and scenario-based innovations. From Mini LED backlighting to silicon photonics, and from medical imaging calibration to 5G emergency coordination, its evolution consistently centers on "high reliability, ultra-HD, and robust intelligence." Looking ahead, as domestic standards rise and AI integration deepens, this device will become a strategic gateway for Industry 4.0 and digital twin ecosystems, driving industry-wide intelligent transformation.
